SPEED-E 40
Compact single-hose wall-mount 40 kW DC charger

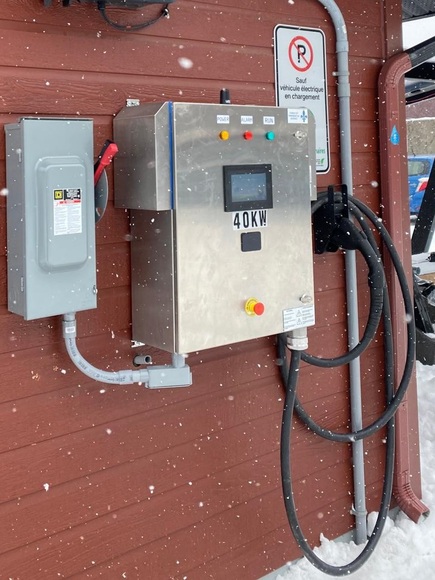

SPEED-E 40 series fast CCS1 chargers feature output voltage up to 900 VDC and output power up to 40 kW. The chargers were specifically designed with high protection and high reliability in mind to serve medium & heavy duty commercial fleets. The compact form-factor allows an easy installation without a base while the charger’s environmental protection is making it suitable for harsh Canadian climate. A user friendly interface with 7” full color touch screen display and a built-in RFID card reader support several authorization options and provide full access to vehicle information during charging.
Specifications
| Model | SPEED-E 40-900-S* |
| Operational | |
| Charging connector | SAE J1772 Combo type 1 (DC only) |
| Charging cable length | 5 or 7.5 m (16’ or 24’) |
| User interface | 7” high brightness touch LCD |
| Card reader | ISO-14443 |
| Data communication | OCPP 1.6J |
| Power input | |
| Input voltage | 480 VAC (nominal), 3-phase delta, 60 Hz |
| Maximum input current | 80A |
| Power factor at max. load | 0.98 |
| Current THD at max. load | 5% |
| Power output | |
| Maximum output power | 40 kW |
| Output voltage | 150..900 VDC |
| Maximum output current | 133 A |
| Conversion efficiency | 95% |
| Environmental | |
| Protection level | IP54, NEMA 3 |
| Operating temperature | -30..+55°C (-20..+130°F) |
| Storage temperature | -40..+70°C (-40..160°F) |
| Mechanical | |
| Dimensions | 810 mm x 710 mm x 280 mm (32” x 28“ x 11”) |
| Weight | 56 kg (125 lb) |

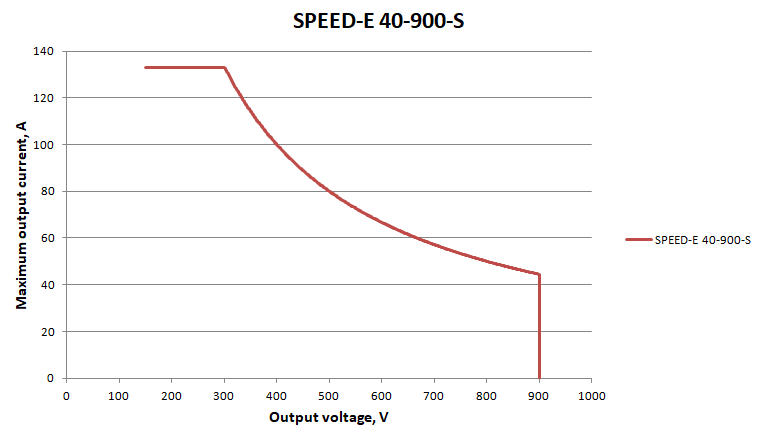

Current capacity as a function of output voltage
